Weighing and Bagging System, ideal for snack foods

REF: MM6446

A complete weighing and bagging system previously used for packing hard-boiled sweets, but suitable for all manner of snack foods, confectionery, nuts, seeds, etc. Features the following equipment:

1. 1 x AST-2-1 stainless-steel hopper and vibratory feeding pan with manual gate. Hopper internal dimensions - 795mm long x 795mm wide. Overall dimensions - 1100mm long x 880mm wide x 1150mm high.
2. 1 x AST-3-5 stainless-steel bucket elevator. Each bucket dimensions - 380mm long x 115mm wide x 60mm high. Overall dimensions - 2650mm long x 680mm wide x 3400mm high.

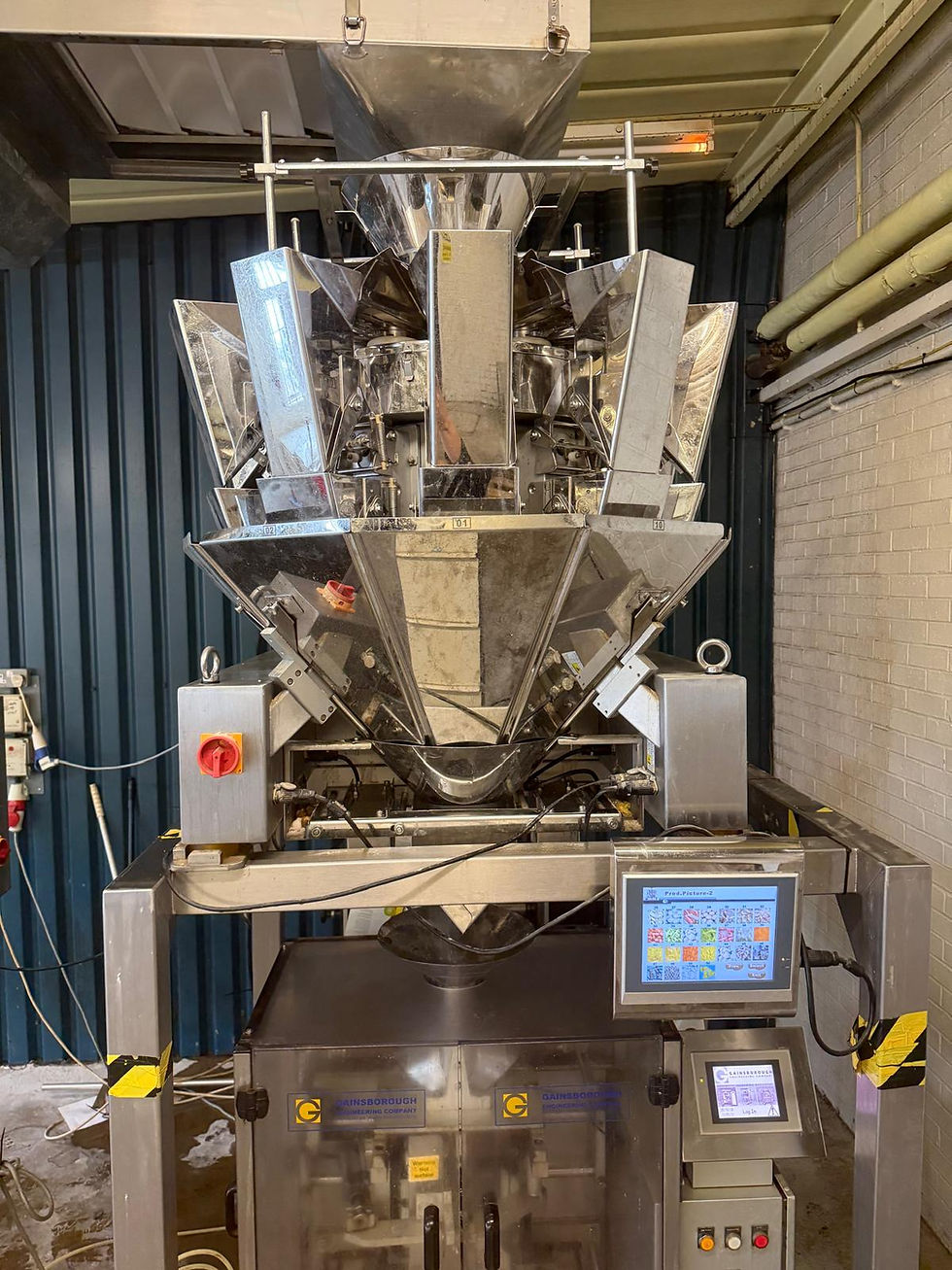

3. 1 x A10 -10-head multi-head weigher with touch-screen control panel and 1.6L smooth weighing pans. Programmable for up to different 50 programs.
4. 1 x Stainless-steel gantry with height-adjustable feet and wheels. Overall dimensions - 1220mm wide x 1320mm deep x 1680mm high.
5. 1 x Gainsborough Engineering Ltd GV2K1 vertical form, fill and seal bagging machine. Serial number – GV081395. Date of manufacture - 2008. Sealing bars: Horizontal - 250mm long. Vertical - 250mm long. Bag size range: Minimum - 50mm x 50mm. Maximum - 200mm x 200mm. Output / Speed - up to 70 packs/minute depending on pack dimensions. Electrical requirements - 230 V / 50 hz /1 phase. Power - 13 Amps.
6. 2 x Markem Imaje SmartDate 5 thermal transfer printers (1 x 53mm and 1 x 128mm).
7. 1 x Gainsborough Engineering Ltd outfeed inclined conveyor. Belt dimensions - 2000mm long x 285mm wide. Height adjustable outfeed height (max. height 1100mm).

Overall footprint of system (in current setup) - 3.7m long x 3.5m wide x 3.4m high.
